ECE 2020: Fundamentals of Digital Design

Examples - Latches & Registers

    Digital Circuit Examples

    compucanvas logo may be used to simulate these examples.

  1. RS Latch
    rs-latch.sch

    RS Latch

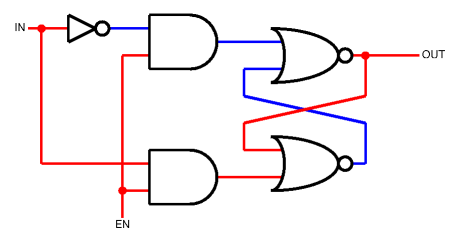

  2. Transparent latch using NOR and AND gates
    transparent-latch-nor.sch

    Transparent latch using NOR and AND gates

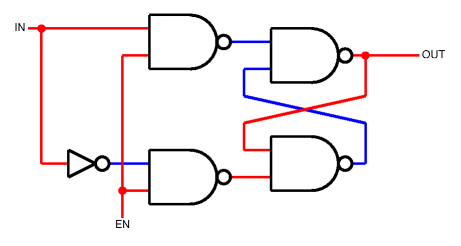

  3. Transparent latch using NAND gates
    transparent-latch-nand.sch

    Transparent latch using NAND gates

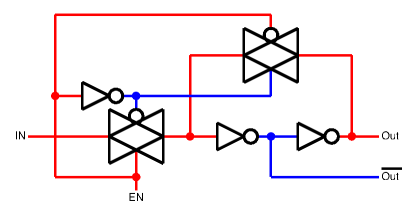

  4. 10 transistor transparent latch
    10T-latch.sch

    10 transistor transparent latch

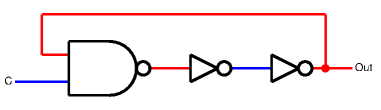

  5. Clock using gates
    clock.sch

    Clock using gates

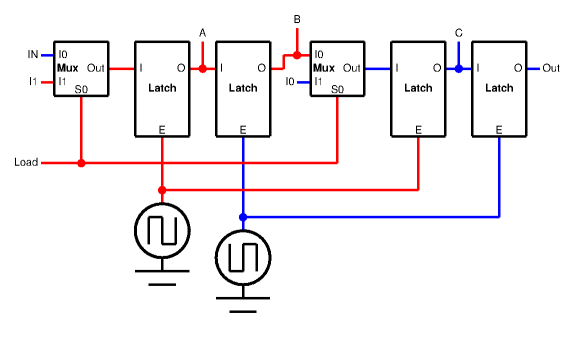

  6. shift register with two clocks
    shiftreg.sch

    shift register with two clocks

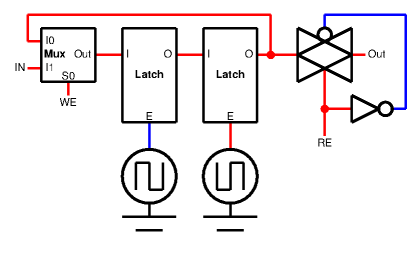

  7. register with one write and one read port
    register1w1r.sch

    register with one write and one read port
