ECE 2020: Fundamentals of Digital Design

Examples - Counters

    Digital Circuit Examples

    compucanvas logo may be used to simulate these examples.

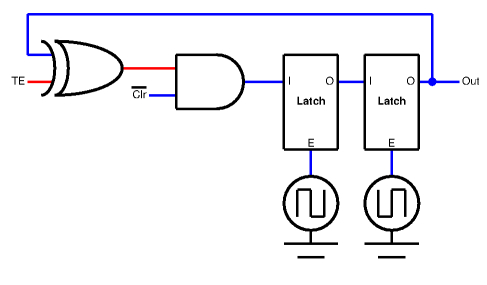

  1. toggle cell
    toggle-cell.sch

    toggle cell

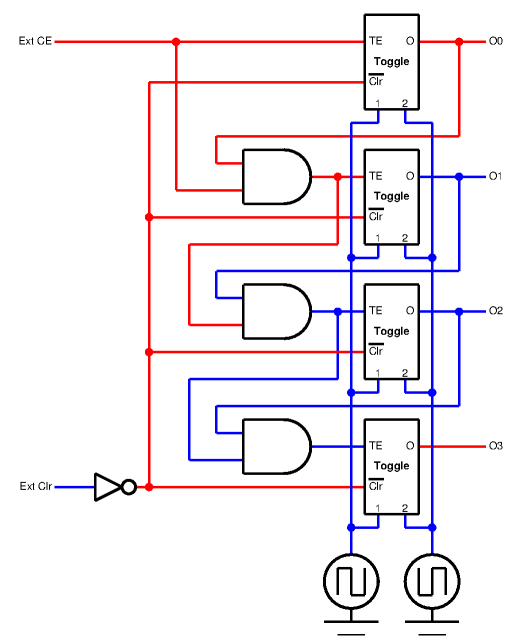

  2. four bit counter using toggle cells
    4bit-counter.sch

    four bit counter using toggle cells

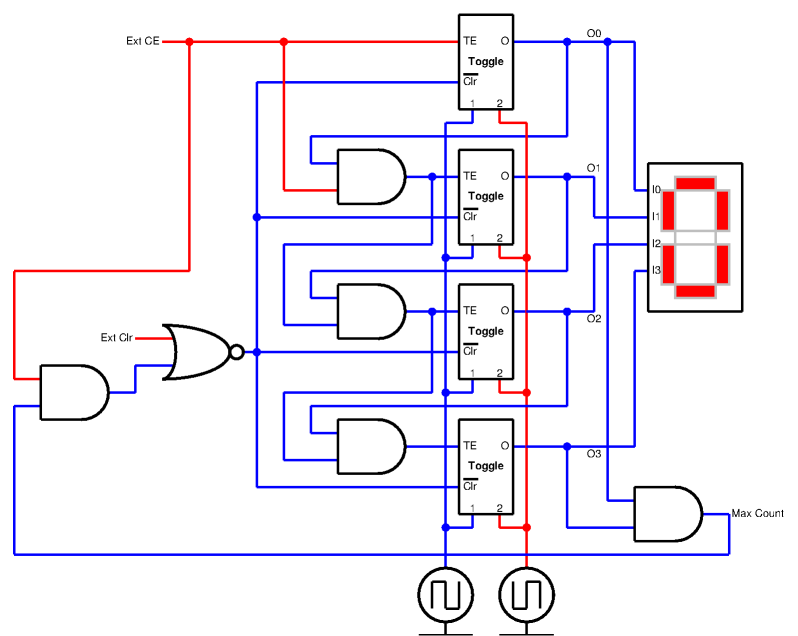

  3. decade counter with display
    decade-counter.sch

    decade counter with display

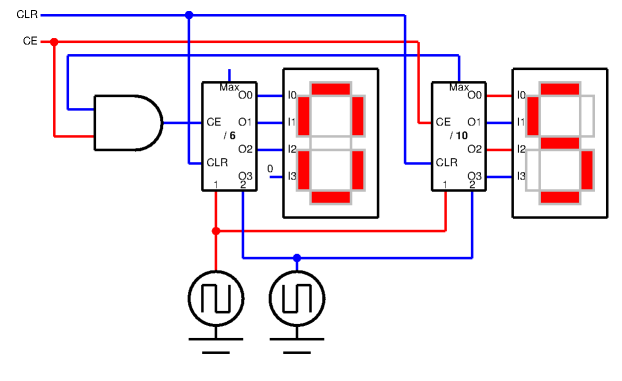

  4. 60 second mult-idigit counter with display
    60secondcounter.sch

    60 second mult-idigit counter with display
