Examples - Gate Design
- Digital Circuit Examples

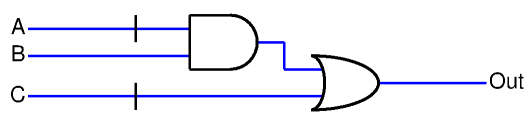

- (-A * B) + -C structure
gate-ex-1-struct.sch

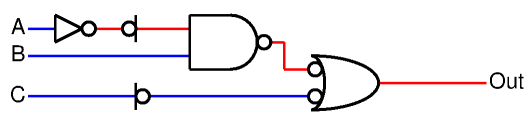

- (-A * B) + -C using NANDs
gate-ex-1-nand.sch

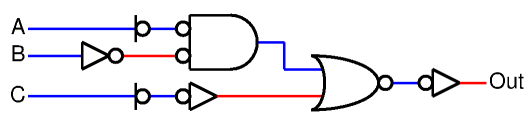

- (-A * B) + -C using NORs
gate-ex-1-nor.sch

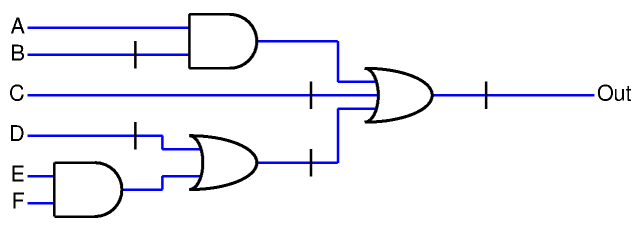

- -((A * -B) + -C + -(-D + (E * F))) structure
gate-ex-3-struct.sch

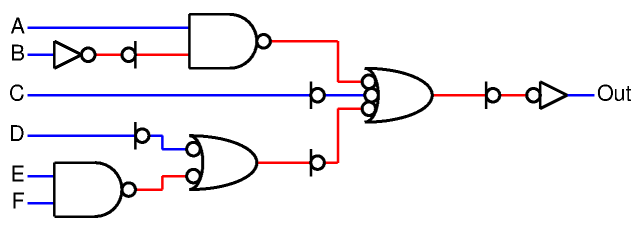

- -((A * -B) + -C + -(-D + (E * F))) using NANDs
gate-ex-3-nand.sch

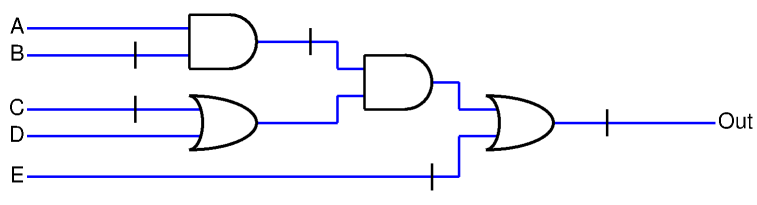

- -( -(A * -B) * (-C + D) + -E) structure
gate-ex-4-struct.sch

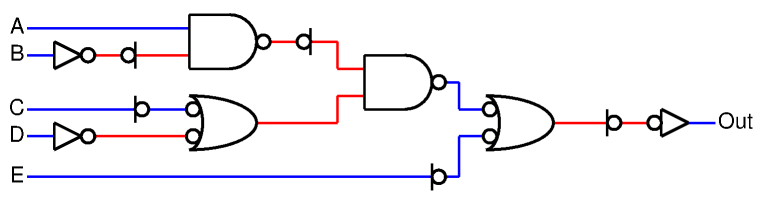

- -( -(A * -B) * (-C + D) + -E) using NANDs
gate-ex-4-nand.sch

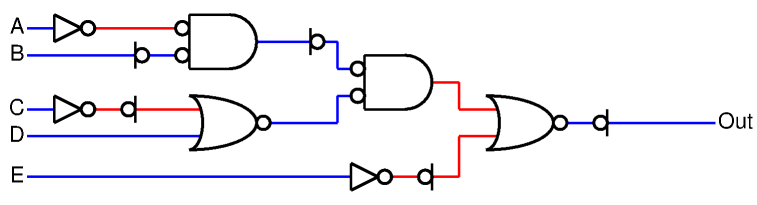

- -( -(A * -B) * (-C + D) + -E) using NORs
gate-ex-4-nor.sch

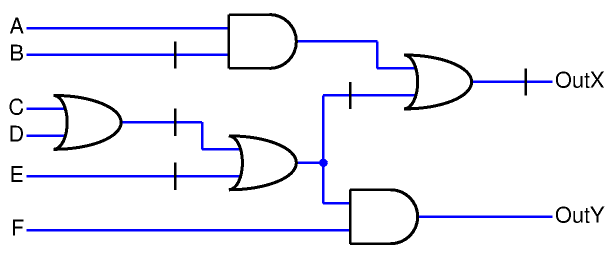

- OutX = -((A * -B) + -(-(C + D) + -E)) OutY = (-(C + D) + -E) * F stucture
gate-ex-5-struct.sch

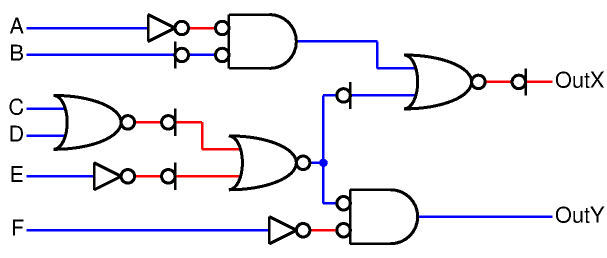

- OutX = -((A * -B) + -(-(C + D) + -E)) OutY = (-(C + D) + -E) * F using NORs
gate-ex-5-nor.sch

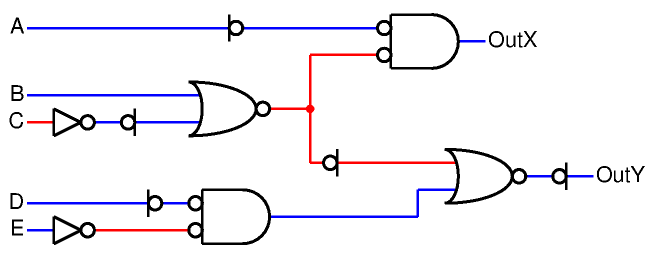

- OutX = -A * (B + -C), OutY = -(-(B + -C) + (-D * E))
gate-ex-6.sch
may be used to simulate these examples.
