ECE 2020: Fundamentals of Digital Design

Examples - Building Blocks

    Digital Circuit Examples

    compucanvas logo may be used to simulate these examples.

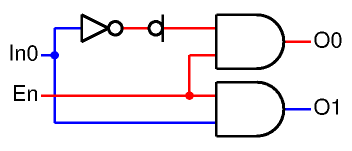

  1. 1 to 2 decoder using AND gates
    1to2decoder.sch

    1 to 2 decoder using AND gates

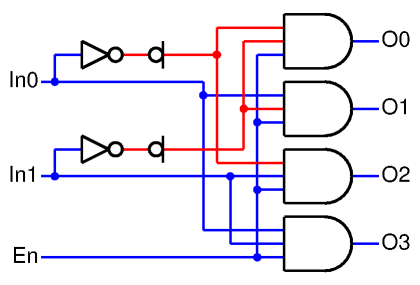

  2. 2 to 4 decoder using AND gates
    2to4decoder.sch

    2 to 4 decoder using AND gates

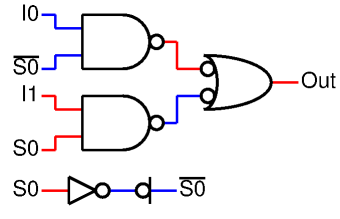

  3. 2 to 1 MUX using NAND gates
    2to1mux-nand.sch

    2 to 1 MUX using NAND gates

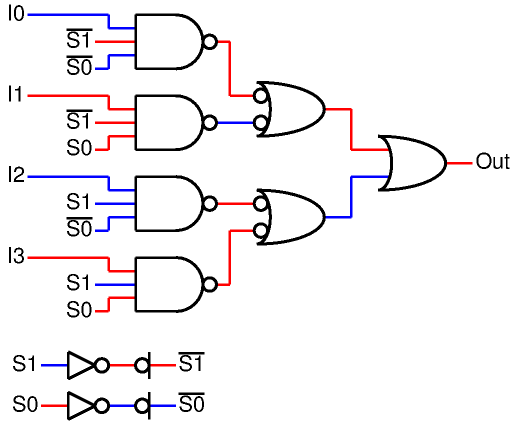

  4. 4 to 1 MUX using NAND gates
    4to1mux-nand.sch

    4 to 1 MUX using NAND gates

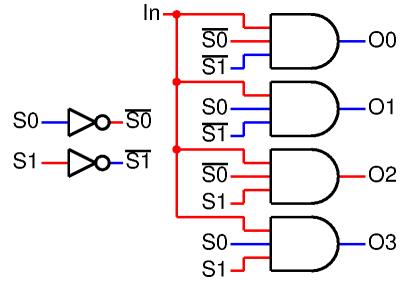

  5. 1 to 4 DEMUX using AND gates
    1to4demux.sch

    1 to 4 DEMUX using AND gates

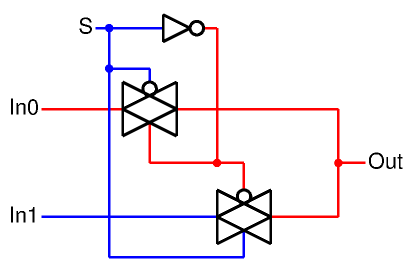

  6. 2 to 1 MUX using pass gates
    2to1mux-pass.sch

    2 to 1 MUX using pass gates

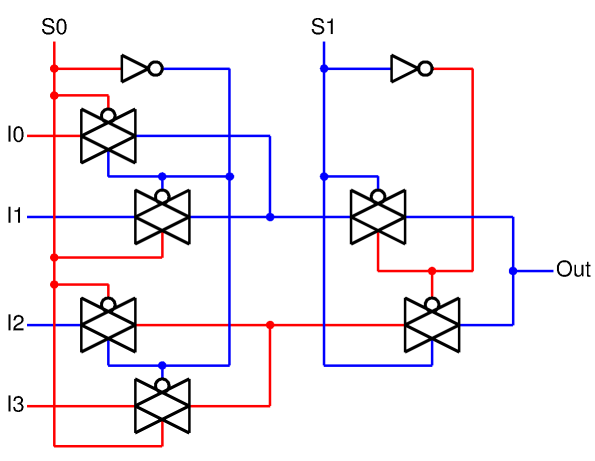

  7. 4 to 1 MUX using pass gates
    4to1mux-pass.sch

    4 to 1 MUX using pass gates

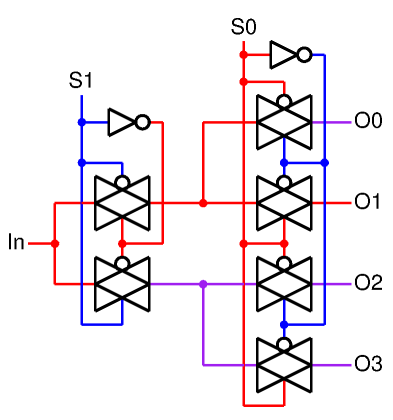

  8. 1 to 4 DEMUX using pass gates
    1to4demux-pass.sch

    1 to 4 DEMUX using pass gates
